TB16 replace John Crane AG mechanical seal
TB16 replace John Crane AG mechanical seal
TB16 replace John Crane AG mechanical seal
TB16 replace John Crane AG mechanical seal
Model
TB16

Item specifics

Type
PTFE rectangular mounted seat
Material
CER,SIC,TC

Product review

Description

TB16 mechanical seal
Replacement to:
John Crane AG

Type:
PTFE rectangular ring mounted seat

Materials:
CER, SIC,TC
Product details

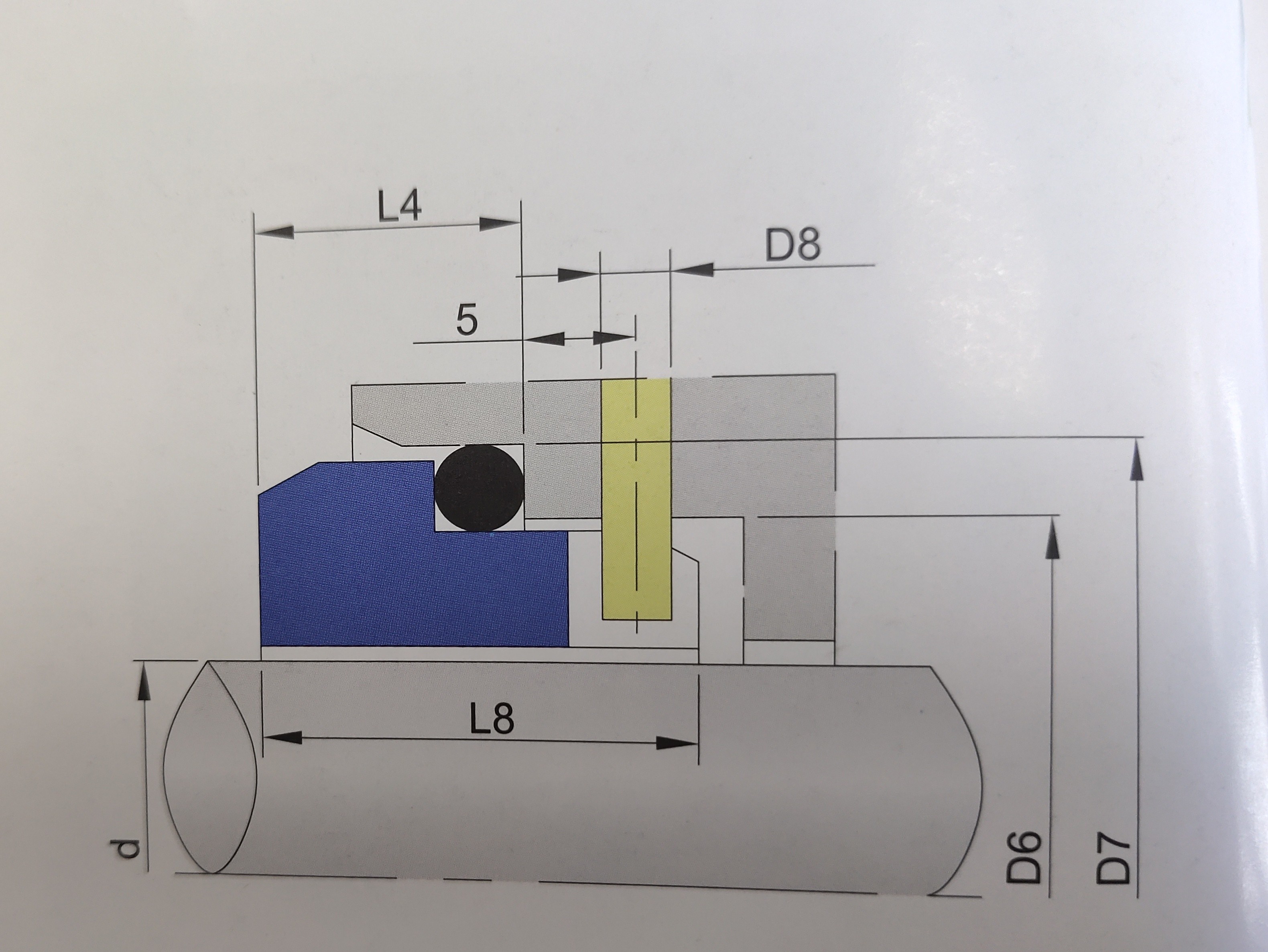

SIZE
Product Number
Size
d
D6
D7
L4
0.250
6.3
7.1
19.05
7.9
0.375
9.5
10.2
22.23
7.9
0.500
12.7
13.4
25.40
7.9
0.625
15.8
16.6
31.75
10.3
0.750
19.0
19.7
34.93
10.3
0.875
22.2
22.9
38.10
10.3
1.000
25.4
26.1
41.28
11.1
1.125
28.5
29.3
44.45
11.1
1.250
31.7
32.4
48.63
11.1
1.375
34.9
35.6
50.80
11.1
1.500
38.1
38.8
53.98
11.1
1.625
41.2
42.4
60.33
12.7
1.750
44.4
45.5
63.50
12.7
1.875
47.6
48.7
66.68
12.7
2.000
50.8
51.9
69.85
12.7
2.125
53.9
55.0
76.20
14.3
2.250
57.1
58.2
79.38
14.3
2.375
60.3
61.4
82.55
14.3
2.500
63.5
64.6
85.73
14.3
2.625
66.6
67.7
85.73
15.9
2.750
69.8
70.9
88.90
15.9
2.875
73.0
74.1
95.25
15.9
3.000
76.2
77.3
98.43
15.9
3.125
79.3
80.5
101.60
19.8
3.250
82.5
83.6
104.78
19.8
3.375
85.7
86.8
107.95
19.8
3.500
88.9
90.0
111.13
19.8
3.625
92.0
93.1
114.30
19.8
3.750
95.2
96.3
117.48
19.8
3.875
98.4
99.5
120.65
19.8
4.000
101.6
102.7
123.83
19.8
4.125
104.7
106.3
130.18
19.8
4.250
107.9
109.5
133.35
19.8
4.375
111.1
112.7
136.53
19.8
4.500
114.3
115.9
139.70
19.8
4.625
117.4
119.0
142.88
19.8
4.750
120.6
122.2
146.05
19.8
4.875
123.8
125.4
149.23
19.8
5.000
127.0
128.6
152.40
19.8
