Model
TB80

Item specifics

Temperature
-30℃-200℃
Speed
≦20m/s
Pressure
≦1.2MPA
Stationary Seat
TBG6
Rotary Ring Material
CAR/SIC/TC
Stationary Ring Material
CER/SIC/TC
O-Ring Material
VIT/NBR/EPDM
Spring & Metal Parts
SUS304/SUS316
Application
Clean Water,Sewage Water,Oil

Product review

Description

TB80 mechanical seal
Replacement to:
Burgmann M32
AESSEAL T01 seal

Operational Conditions:
Temperature: -30℃ to +200℃
Pressure: ≤1.2MPa
Speed: ≤20m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: TBG6
Alternative:
Product details

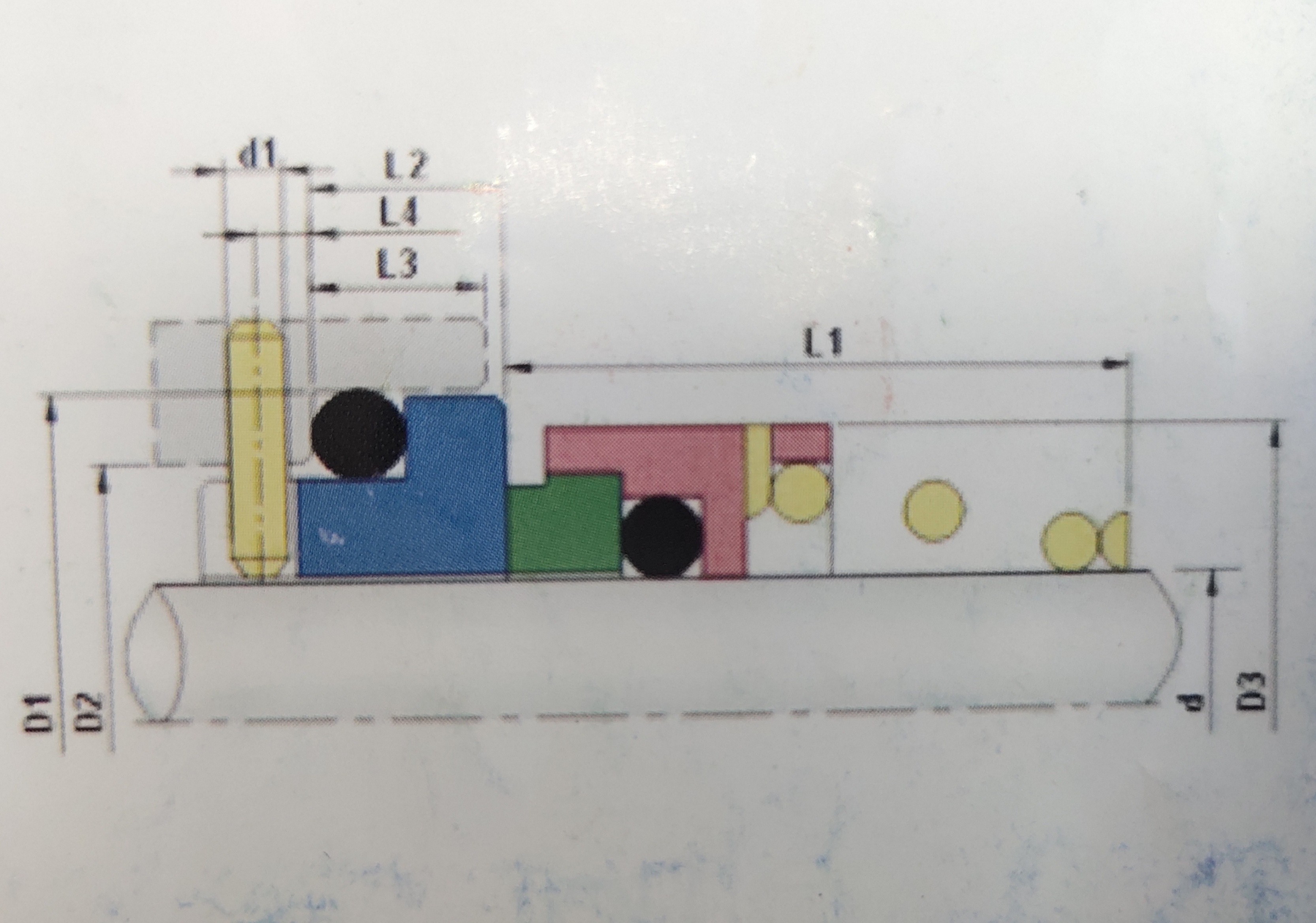

SIZE
Product Number
Size/
Metric
d
D3
D2
D1
d1
L1
10
19.2
15.5
19.0
15.5
6.6
5.0
12
21.6
17.5
21.0
15.5
5.6
5.0
14
24.6
20.5
23.0
15.5
5.6
5.0
15
24.6
20.5
24.0
15.5
6.6
5.0
16
28.0
22.0
26.0
17.5
7.5
6.5
18
30.0
24.0
29.0
18.5
8.0
6.5
19
31.0
25.0
31.0
20.0
7.5
6.5
20
35.0
29.5
31.0
20.0
7.5
6.5
22
35.0
29.5
33.0
21.5
7.5
6.5
24
38.0
32.0
35.0
23.0
7.5
6.5
25
38.0
32.0
36.0
24.5
7.5
6.5
26
40.0
34.0
37.0
24.5
8.0
6.5
28
42.0
36.0
40.0
24.5
9.0
6.5
30
45.0
39.2
43.0
24.5
10.5
6.5
32
48.0
42.2
46.0
28.0
10.5
6.5
35
52.0
46.2
49.0
28.0
11.0
6.5
38
55.0
49.2
53.0
31.0
10.3
6.5
40
58.0
52.2
56.0
34.0
10.8
6.5
42
62.0
53.3
59.0
35.0
12.0
8.0
43
62.0
54.3
59.0
35.0
12.0
8.0
45
64.0
55.3
61.0
36.5
11.6
8.0
48
68.4
59.7
64.0
42.0
11.6
8.0
50
69.3
60.8
66.0
43.0
11.6
8.0
55
75.4
66.5
71.0
47.0
13.3
8.0
58
78.4
69.5
76.0
50.0
13.3
8.0
60
80.4
71.5
78.0
51.0
13.3
8.0
65
85.4
76.5
84.0
52.0
13.0
8.0
68
91.5
82.7
88.0
53.0
13.7
8.0
70
92.0
83.0
90.0
54.0
13.0
8.0
75
99.0
92.2
98.0
55.0
14.0
8.0
80
104.0
95.2
100.0
58.0
15.0
8.0
